BACKSPLASH COVING MACHINES

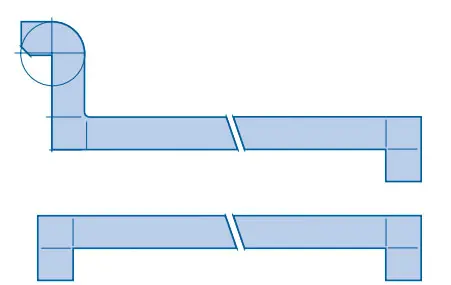

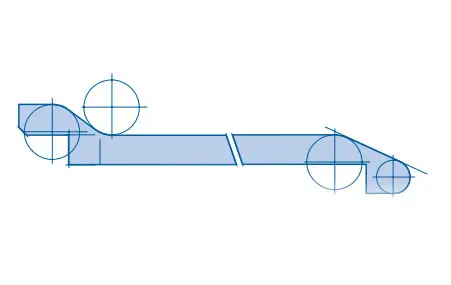

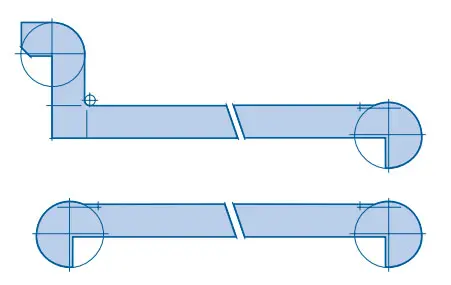

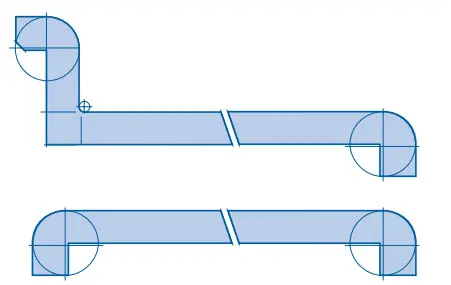

The Evans Midwest family of AutoCove™ machines is uniquely designed to postform the inside radius of a kitchen countertop or vanity top with a coved backsplash, in high volume production environments. The key to producing a quality backsplash is a rigid frame and rear fence, uniform contact of the countertop to the heating element, and a concentric forming bar to prevent stretching. The AutoCove™ Coving machine is designed to meet these specific objectives. Evans Midwest machines have been used extensively in the kitchen countertop industries for over 50 years. We help you laminate better, increase productivity, and improve quality.

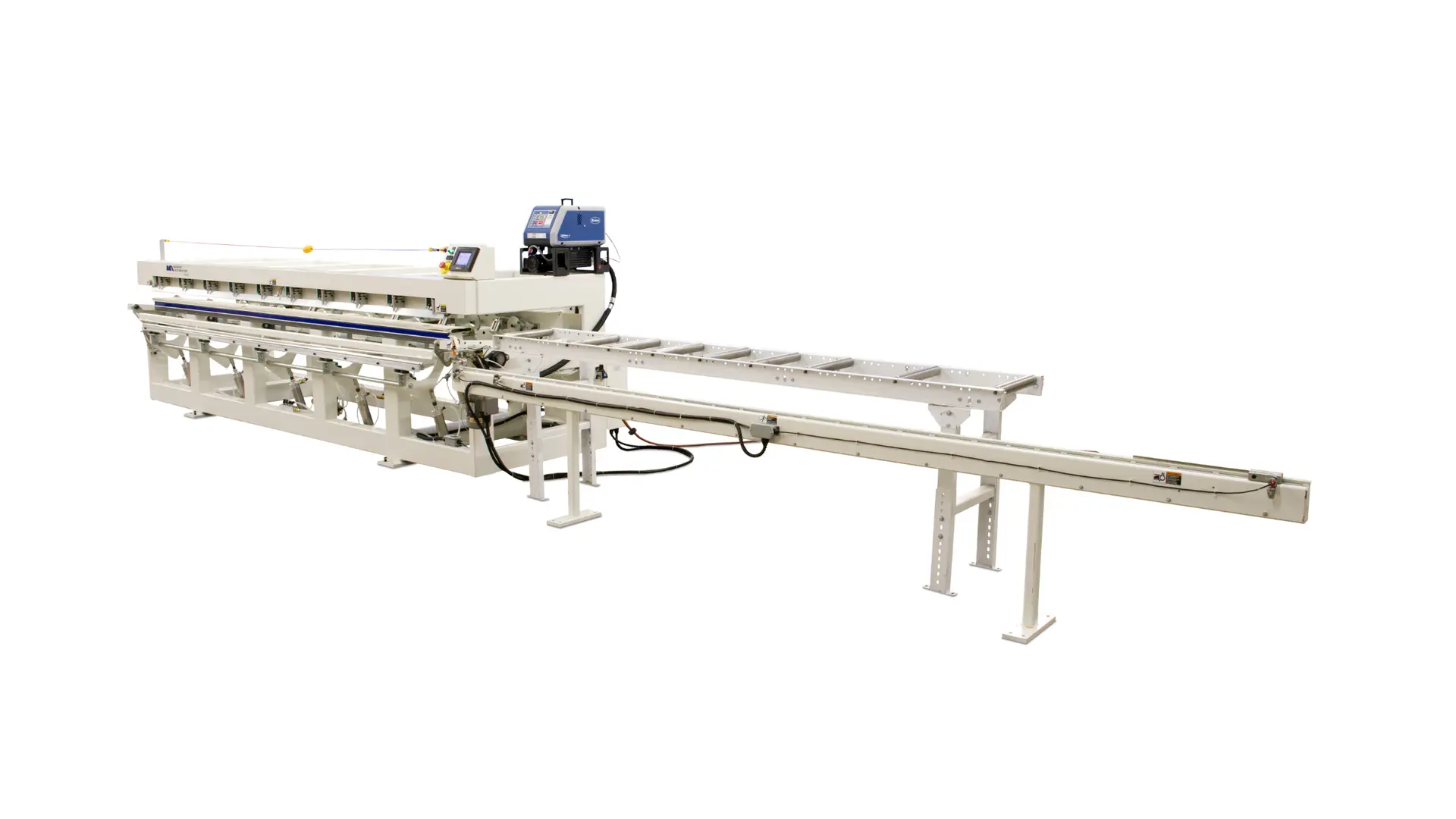

Autocove AC 3120
The AC 3120 is the perfect machine for the medium size kitchen countertop manufacturer designed to produce up to one countertop per minute, or 5,000 linear feet per shift. The pneumatic deck lift & clamp system, electronically controlled heat bar, cove-stick feeding/clamping system, and unique two-stage forming mechanism ensure a true 90° backsplash every time. Optional powered infeed conveyor and automatic loading system maximizes through-put without additional labor.
Features
- Heavy-duty frame with additional cross support beams to reduce flexing
- Rigid rear fence assembly with large diameter jack screws and seven (7) contact points
- Pneumatic lift and clamp system with air bladder and hold-over cylinders to ensure countertop contact with rear fence and cove bar assembly
- Aluminum cove bar assembly with electronic temperature controls
- Automatic cove-stick system with electronic linear actuated pusher and variable speed control
- Cove stick placement rack with five (5) pneumatic cylinders
- Nordson Durablue™ Hot Melt System with air-actuated glue gun and manifold
- Automatic form bar assembly with unique twin cylinder, dual actuating design ensures concentricity
- Ten (10) 90° stops
- Electronically controlled with adjustment
- Operator Interface (HMI) with PLC controlled sequence of operation
- Special infeed and outfeed conveyors
- Optional automatic load/unload system
Key Features
Operator interface with color monitor and PLC controlled sequence of operation
Pneumatic bladder and hold-over cylinders to ensure uniform contact and temperature
Aluminum cove bar with electronic temperature controls and 90° stops
Unique twin cylinder, dual actuating design ensures concentricity
Automatic cove stick feeding system with air actuated glue gun
Cove stick placement rack with (5) pneumatic cylinders
