3D LAMINATING PRESSES

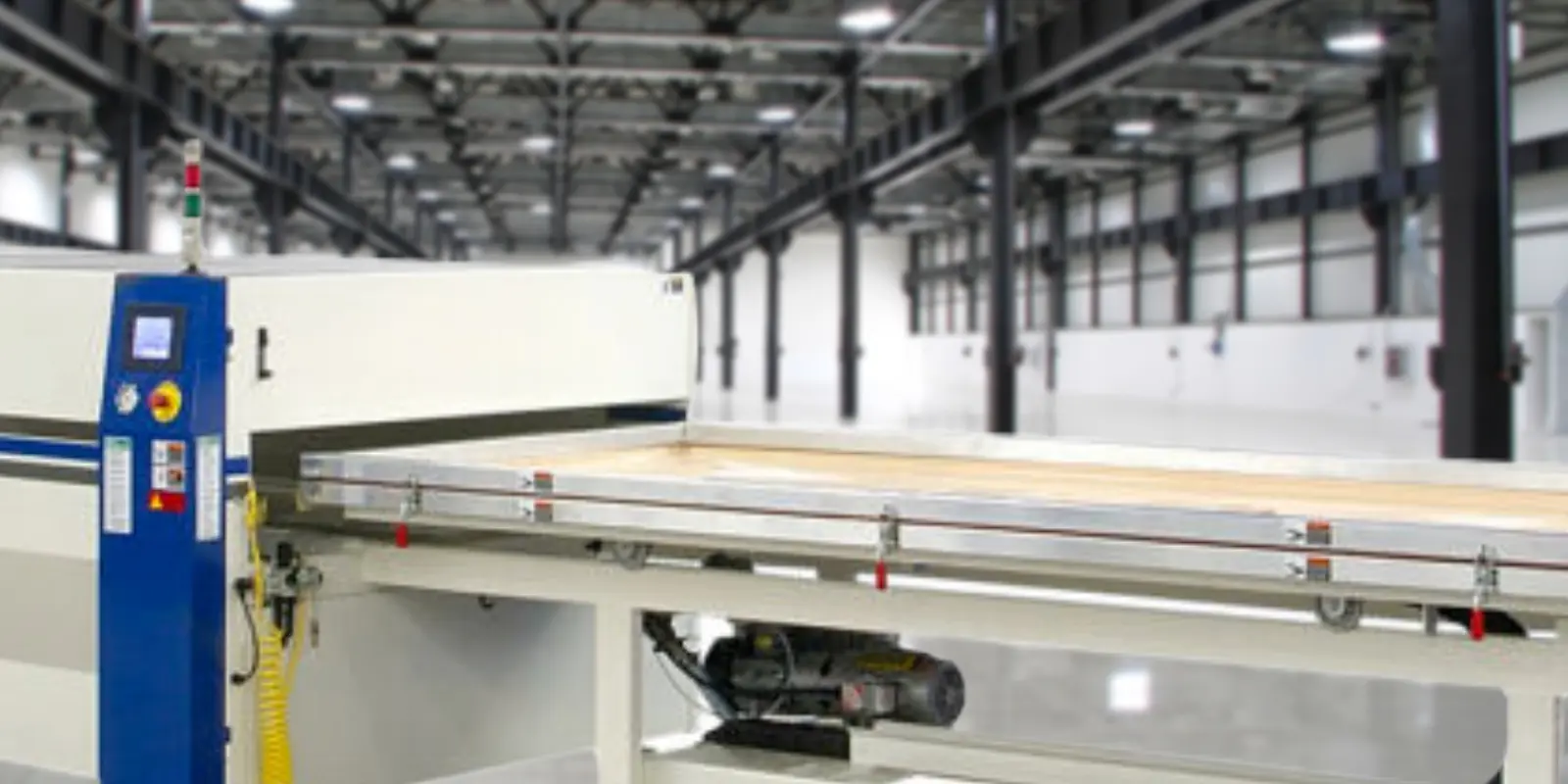

Evans Midwest manufactures an industrial line of 3D shuttle and clamshell style laminating presses for a wide range of industries. Our shuttle and Clamshell Presses provide a simple and affordable solution for 3-dimensional laminating applications and can laminate a variety of decorative overlays including flexible and rigid vinyls, KYDEX® thermoplastic sheet, surf(x)®, and polystyrene. Bottom line? We help you laminate better, increase productivity, and improve quality.


VACUUM PRESSES

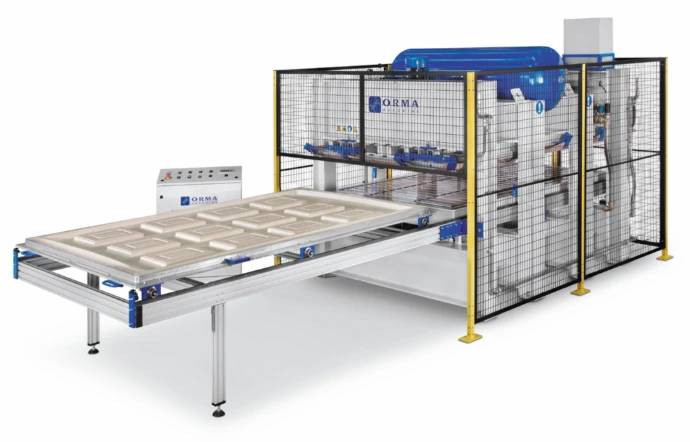

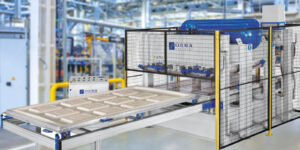

MEMBRANE PRESSES

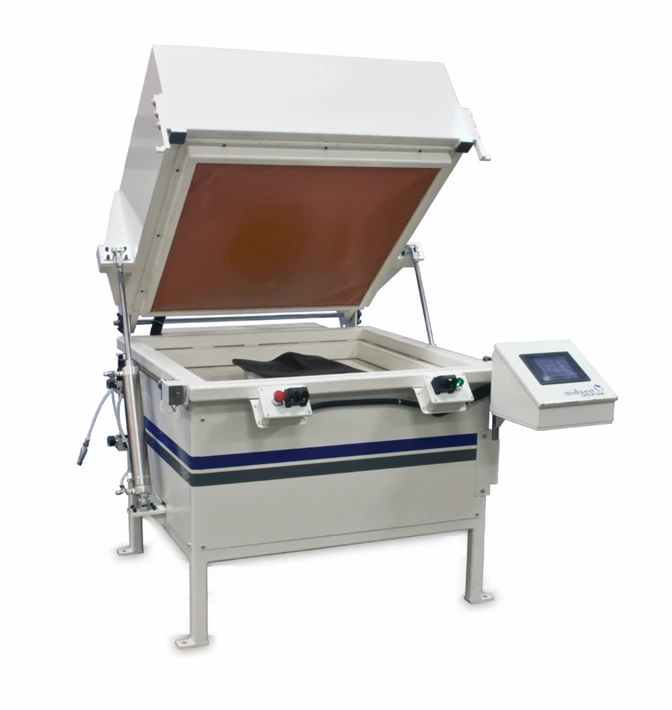

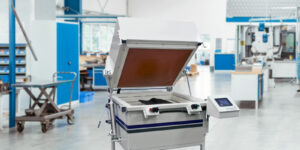

SEAT BONDER

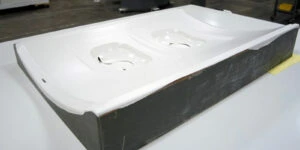

AVIATION PRESSES

  • Welded tube frame
  • Heating chamber to assure uniform heat
  • 375-watt infrared “DuraLamp” heating elements
  • Raytek non-contact, infrared thermal sensor
  • Rear-mounted electrical enclosure
  • Operator interface (HMI) with color monitor and PLC-controlled sequence of operation
  • Stationary heating chamber
  • Two (2) viewing windows
  • Vacuum table
  • Outrigger framework for vacuum shuttle table
  • Heating and cooling cycle indicator light with buzzer
  • Front-mounted vacuum gauge
  • Oil-sealed, rotary-vane, single-stage, air-cooled and direct-driven Busch vacuum pumps
  • Unwind stand for vinyl roll(s)
  • Emergency stop system
  • Available in 4×8, 4×10, 4×12 and 5×8-footsizes

INFRARED HEATING
Our proprietary 375 watt “DuraLamp” heating elements rated at 10,000 hours, and a non-contact IR sensor
PROPRIETARY SEALING
An intermediate flange with a proprietary extruded silicone seal allows 3D laminating with or without a membrane
BUSCH VACUUM PUMP
Standard 2 HP Busch vacuum pump creates a nearly perfect vacuum of 29.6 inches of Hg
UNWIND STAND
A double unwind stand facilitates handling of heavy and cumbersome thermofoil rolls
OPERATOR INTERFACE
Color monitor controls, heating, soak, pressure and cooling parameters, with enough memory to store 20 programs
